ERENKÖY RUH VE SİNİR HASTALIKLARI HASTANESİ YARIŞMASI

Can patients be rehabilitated by creating a total meaningful garden in the middle of the pine forest?

ERENKÖY HOSPITAL FOR PSYCHIATRIC DISEASES

#competition, #1stprize, #architecture, #erenköy, #openspace, #public, #landscape, #nature, #mentalhealth

Information

ERENKÖY HOSPITAL FOR PSYCHIATRIC DISEASES

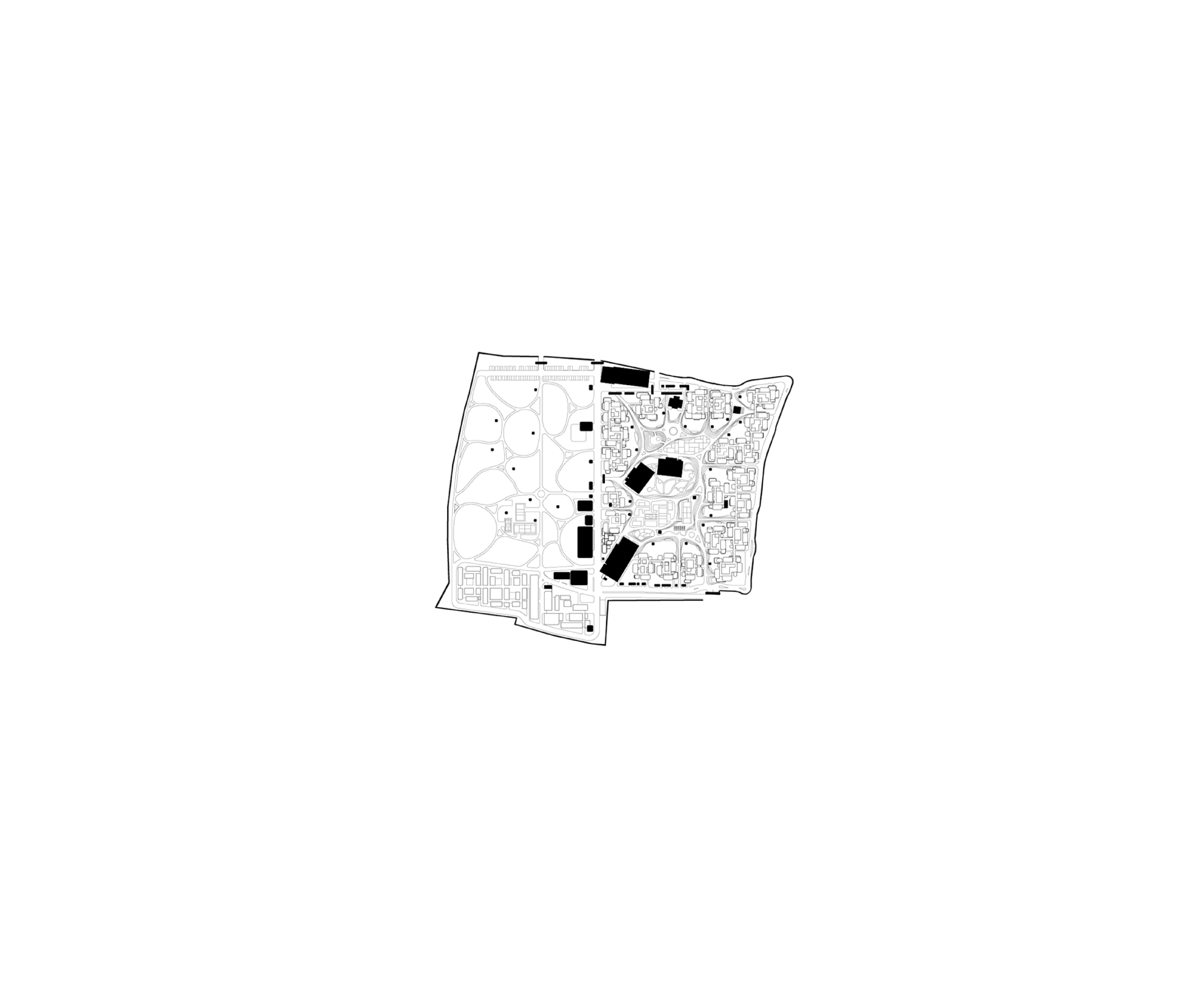

The proposed design is positioned on the periphery of the eastern part of the competition site. The trees are more randomly located in this part, allowing the hospital units to fill in the gaps to form dynamic compositions. By situtating the clinical units on the periphery, it is aimed to eliminate the boundary effect, creating a large atrium space. This allows the patients to see the high quality structures and the designed therapeutic gardens instead of the high walls that isolate them from the society.

The middle garden defined by these sequential structures is a common space that belongs only to the patients. The topographical landscape structures are used as the boundaries of the individual gardens which seperate patients with different stages of illnesses, eliminating the imprinting effect of the fences, allowing patients to be surrounded by the healing power of landscape instead of staring eyes of the passing staff and visitors.

Common Spaces such as sports facilities, medicinal aromatic herb gardens, atelier and workshop spaces and group therapy areas are designed for patients to socialize as a part of their healing process. The preserved historical buildings are also used as atelier and workshop areas for therapy sessions.

The western part of the area with the ryhthmic tree pattern, together with the empty site on the south side, is designed as an open park with recreational facilities open to the public and the daily visitors. The daily use facilities and the emergency areas are located in this part so that the visitors have limited contact with the patients on the eastern side. This allows the patients to be isolated from the daily stimuli and feel more safe in their own controlled safe environment.

All the common areas designed in the western side such as the conference hall, library, nursery, meeting hall, sport facilities, cafeteria, etc. serve the staff and the visitors.

Client

Istanbul Provincial Health Directorate

Location

İstanbul

Size

62500 sqm

Awards

1st Prize

Program

Health & Education

Status

National Competition

Collaborators

Süveyda BAYRAKTAR ATAGÜR (Landscape Architect)

Mustafa Yavuz BİLGİÇ (Civil Engineer)

Prof. Dr. Alper ÜNLÜ

Spc. Psy. Elif Okan GEZMİŞ (Psychologist)

Naz AKDEMİR (Intern)

Sena Şeyma CAN (Intern)

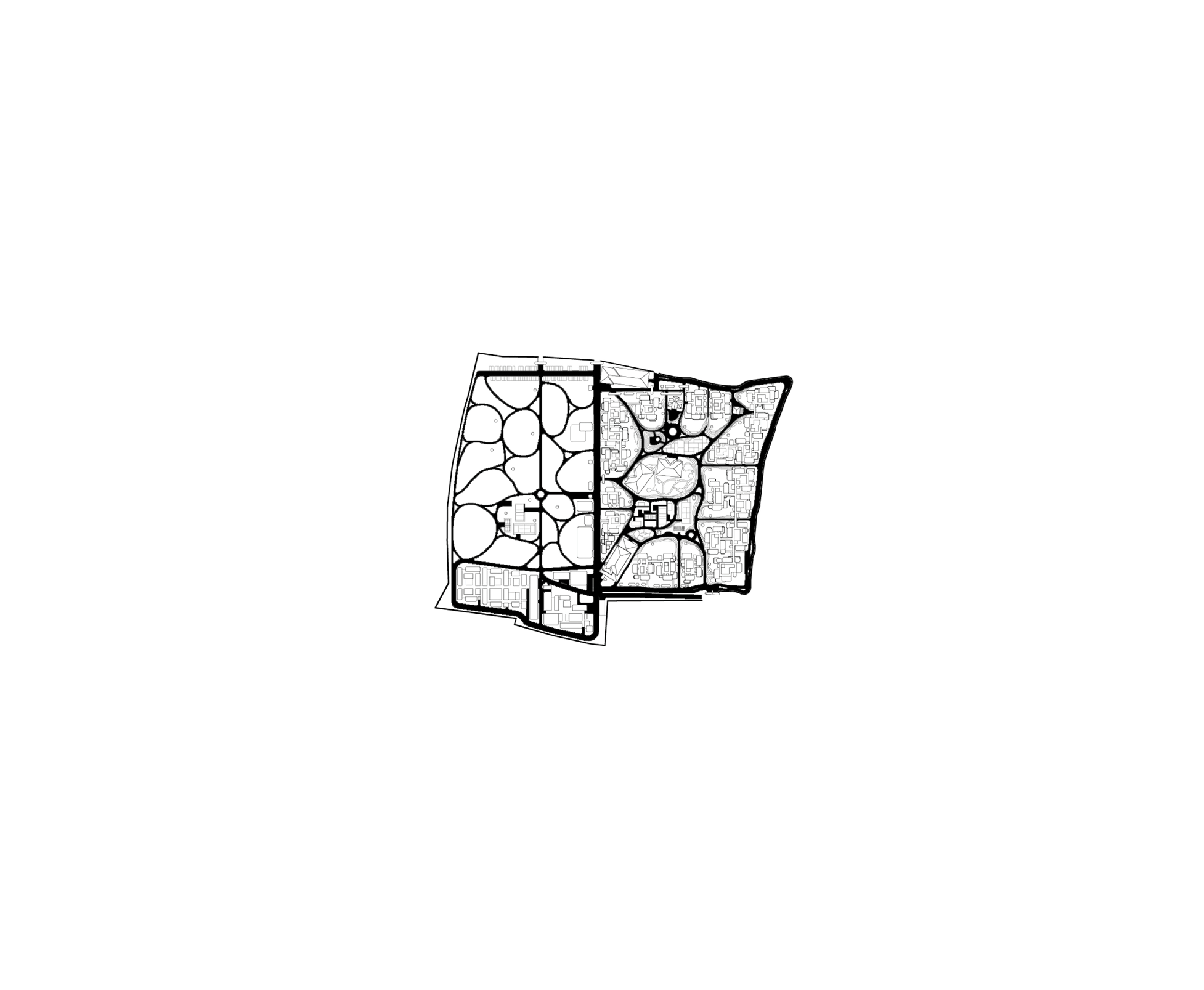

INTERNAL BORDERS AND COURTYARD TYPOLOGY

The middle axis of the field sharply separates the regular woodland from the irregular greenwood area that is more hollow and allows for construction. The part to the east of the axis is considered as an integrated courtyard and is reserved for the use of patients. With this intermediate transition border, it is planned that patients can benefit from the use of a wider garden in a controlled manner. This courtyard typology is limited by the service-emergency vehicle road that crosses the area outside, inside the towing distance. The interior is shaped according to the existing buildings with social facilities.

SETTLING WHERE TREES ALLOW

The eastern block, where the psychiatry clinics are located, is constructed in a fragmented texture so as to be placed between trees. Each unit has its own inner courtyard and an outer courtyard. It is foreseen that some of the units belonging to the same clinic will share the gardens.
On the axis that divides the area into two on the north-south axis, there are personnel social areas towards the pine forest. This section works as a free space for visitors.

PATTERN OF THE PROGRAM

The area with little trees in the southwest of the area has been designed as the area where polyclinics and emergency services are located. This area, together with the pine forest, is open to visitors from outside and the public. The clear separation in the field ensures that day visitors do not intersect with patients receiving treatment in inpatient psychiatric clinics.

Units that can see the Pine Forest are divided into patients who are at the stage of social integration, such as AMATEM Rehabilitation areas.

COMMON AREAS

The middle axis, which separates the patients who are treated and the people who use the area daily, is also the region where social facilities and common areas are concentrated. In this area, there is an open car park for 70 vehicles, as well as buildings such as a library, conference hall, kindergarten, and meeting room, as well as service units such as a buffet, dining hall, and pharmacy. The pavilions in the clinic gardens in the hospital courtyard allow patients to socialize. Service areas such as laundry, technical service, warehouse, and power plant located on the outer wall are fed from the vehicle service road.

WALKING - BICYCLE ROADS

It has been very difficult to determine the uninterrupted road lines in the densely wooded area. For this reason, the lines that will contact the minimum tree are determined and sports areas have been designed as far as ground conditions allow. The main roads on the side of the hospital are designed in the interior of the ambulance or vehicle in case of an emergency. In the pine area, routes have been determined to encourage pedestrian and bicycle use. While the sports fields in the east of the area serve inpatients, the fields in the pine forest in the west are open to the use of the staff.

INTERNAL BORDERS AND COURTYARD TYPOLOGY

The middle axis of the field sharply separates the regular woodland from the irregular greenwood area that is more hollow and allows for construction. The part to the east of the axis is considered as an integrated courtyard and is reserved for the use of patients. With this intermediate transition border, it is planned that patients can benefit from the use of a wider garden in a controlled manner. This courtyard typology is limited by the service-emergency vehicle road that crosses the area outside, inside the towing distance. The interior is shaped according to the existing buildings with social facilities.

SETTLING WHERE TREES ALLOW

The eastern block, where the psychiatry clinics are located, is constructed in a fragmented texture so as to be placed between trees. Each unit has its own inner courtyard and an outer courtyard. It is foreseen that some of the units belonging to the same clinic will share the gardens.
On the axis that divides the area into two on the north-south axis, there are personnel social areas towards the pine forest. This section works as a free space for visitors.

PATTERN OF THE PROGRAM

The area with little trees in the southwest of the area has been designed as the area where polyclinics and emergency services are located. This area, together with the pine forest, is open to visitors from outside and the public. The clear separation in the field ensures that day visitors do not intersect with patients receiving treatment in inpatient psychiatric clinics.

Units that can see the Pine Forest are divided into patients who are at the stage of social integration, such as AMATEM Rehabilitation areas.

COMMON AREAS

The middle axis, which separates the patients who are treated and the people who use the area daily, is also the region where social facilities and common areas are concentrated. In this area, there is an open car park for 70 vehicles, as well as buildings such as a library, conference hall, kindergarten, and meeting room, as well as service units such as a buffet, dining hall, and pharmacy. The pavilions in the clinic gardens in the hospital courtyard allow patients to socialize. Service areas such as laundry, technical service, warehouse, and power plant located on the outer wall are fed from the vehicle service road.

WALKING - BICYCLE ROADS

It has been very difficult to determine the uninterrupted road lines in the densely wooded area. For this reason, the lines that will contact the minimum tree are determined and sports areas have been designed as far as ground conditions allow. The main roads on the side of the hospital are designed in the interior of the ambulance or vehicle in case of an emergency. In the pine area, routes have been determined to encourage pedestrian and bicycle use. While the sports fields in the east of the area serve inpatients, the fields in the pine forest in the west are open to the use of the staff.

INTERNAL BORDERS AND COURTYARD TYPOLOGY

The middle axis of the field sharply separates the regular woodland from the irregular greenwood area that is more hollow and allows for construction. The part to the east of the axis is considered as an integrated courtyard and is reserved for the use of patients. With this intermediate transition border, it is planned that patients can benefit from the use of a wider garden in a controlled manner. This courtyard typology is limited by the service-emergency vehicle road that crosses the area outside, inside the towing distance. The interior is shaped according to the existing buildings with social facilities.

SETTLING WHERE TREES ALLOW

The eastern block, where the psychiatry clinics are located, is constructed in a fragmented texture so as to be placed between trees. Each unit has its own inner courtyard and an outer courtyard. It is foreseen that some of the units belonging to the same clinic will share the gardens.
On the axis that divides the area into two on the north-south axis, there are personnel social areas towards the pine forest. This section works as a free space for visitors.

PATTERN OF THE PROGRAM

The area with little trees in the southwest of the area has been designed as the area where polyclinics and emergency services are located. This area, together with the pine forest, is open to visitors from outside and the public. The clear separation in the field ensures that day visitors do not intersect with patients receiving treatment in inpatient psychiatric clinics.

Units that can see the Pine Forest are divided into patients who are at the stage of social integration, such as AMATEM Rehabilitation areas.

COMMON AREAS

The middle axis, which separates the patients who are treated and the people who use the area daily, is also the region where social facilities and common areas are concentrated. In this area, there is an open car park for 70 vehicles, as well as buildings such as a library, conference hall, kindergarten, and meeting room, as well as service units such as a buffet, dining hall, and pharmacy. The pavilions in the clinic gardens in the hospital courtyard allow patients to socialize. Service areas such as laundry, technical service, warehouse, and power plant located on the outer wall are fed from the vehicle service road.

WALKING - BICYCLE ROADS

It has been very difficult to determine the uninterrupted road lines in the densely wooded area. For this reason, the lines that will contact the minimum tree are determined and sports areas have been designed as far as ground conditions allow. The main roads on the side of the hospital are designed in the interior of the ambulance or vehicle in case of an emergency. In the pine area, routes have been determined to encourage pedestrian and bicycle use. While the sports fields in the east of the area serve inpatients, the fields in the pine forest in the west are open to the use of the staff.

INTERNAL BORDERS AND COURTYARD TYPOLOGY

The middle axis of the field sharply separates the regular woodland from the irregular greenwood area that is more hollow and allows for construction. The part to the east of the axis is considered as an integrated courtyard and is reserved for the use of patients. With this intermediate transition border, it is planned that patients can benefit from the use of a wider garden in a controlled manner. This courtyard typology is limited by the service-emergency vehicle road that crosses the area outside, inside the towing distance. The interior is shaped according to the existing buildings with social facilities.

SETTLING WHERE TREES ALLOW

The eastern block, where the psychiatry clinics are located, is constructed in a fragmented texture so as to be placed between trees. Each unit has its own inner courtyard and an outer courtyard. It is foreseen that some of the units belonging to the same clinic will share the gardens.
On the axis that divides the area into two on the north-south axis, there are personnel social areas towards the pine forest. This section works as a free space for visitors.

PATTERN OF THE PROGRAM

The area with little trees in the southwest of the area has been designed as the area where polyclinics and emergency services are located. This area, together with the pine forest, is open to visitors from outside and the public. The clear separation in the field ensures that day visitors do not intersect with patients receiving treatment in inpatient psychiatric clinics.

Units that can see the Pine Forest are divided into patients who are at the stage of social integration, such as AMATEM Rehabilitation areas.

COMMON AREAS

The middle axis, which separates the patients who are treated and the people who use the area daily, is also the region where social facilities and common areas are concentrated. In this area, there is an open car park for 70 vehicles, as well as buildings such as a library, conference hall, kindergarten, and meeting room, as well as service units such as a buffet, dining hall, and pharmacy. The pavilions in the clinic gardens in the hospital courtyard allow patients to socialize. Service areas such as laundry, technical service, warehouse, and power plant located on the outer wall are fed from the vehicle service road.

WALKING - BICYCLE ROADS

It has been very difficult to determine the uninterrupted road lines in the densely wooded area. For this reason, the lines that will contact the minimum tree are determined and sports areas have been designed as far as ground conditions allow. The main roads on the side of the hospital are designed in the interior of the ambulance or vehicle in case of an emergency. In the pine area, routes have been determined to encourage pedestrian and bicycle use. While the sports fields in the east of the area serve inpatients, the fields in the pine forest in the west are open to the use of the staff.

INTERNAL BORDERS AND COURTYARD TYPOLOGY

The middle axis of the field sharply separates the regular woodland from the irregular greenwood area that is more hollow and allows for construction. The part to the east of the axis is considered as an integrated courtyard and is reserved for the use of patients. With this intermediate transition border, it is planned that patients can benefit from the use of a wider garden in a controlled manner. This courtyard typology is limited by the service-emergency vehicle road that crosses the area outside, inside the towing distance. The interior is shaped according to the existing buildings with social facilities.

SETTLING WHERE TREES ALLOW

The eastern block, where the psychiatry clinics are located, is constructed in a fragmented texture so as to be placed between trees. Each unit has its own inner courtyard and an outer courtyard. It is foreseen that some of the units belonging to the same clinic will share the gardens.
On the axis that divides the area into two on the north-south axis, there are personnel social areas towards the pine forest. This section works as a free space for visitors.

PATTERN OF THE PROGRAM

The area with little trees in the southwest of the area has been designed as the area where polyclinics and emergency services are located. This area, together with the pine forest, is open to visitors from outside and the public. The clear separation in the field ensures that day visitors do not intersect with patients receiving treatment in inpatient psychiatric clinics.

Units that can see the Pine Forest are divided into patients who are at the stage of social integration, such as AMATEM Rehabilitation areas.

COMMON AREAS

The middle axis, which separates the patients who are treated and the people who use the area daily, is also the region where social facilities and common areas are concentrated. In this area, there is an open car park for 70 vehicles, as well as buildings such as a library, conference hall, kindergarten, and meeting room, as well as service units such as a buffet, dining hall, and pharmacy. The pavilions in the clinic gardens in the hospital courtyard allow patients to socialize. Service areas such as laundry, technical service, warehouse, and power plant located on the outer wall are fed from the vehicle service road.

WALKING - BICYCLE ROADS

It has been very difficult to determine the uninterrupted road lines in the densely wooded area. For this reason, the lines that will contact the minimum tree are determined and sports areas have been designed as far as ground conditions allow. The main roads on the side of the hospital are designed in the interior of the ambulance or vehicle in case of an emergency. In the pine area, routes have been determined to encourage pedestrian and bicycle use. While the sports fields in the east of the area serve inpatients, the fields in the pine forest in the west are open to the use of the staff.

MORPHOLOGICAL APPROACH

This is a world with borders within borders.

Above us is a ceiling, the sky is invisible and the sunlight barely seeps in. Beneath us is the inefficient soil that grass barely survives due to the acidity of the pistachio pines.

The existing structures are typical public buildings of the 70s without healing qualities. Military, prison, and hospital buildings are built with such plans, which have been in the public archives for many years, and existing structures are no different from such projects.

There is a general problem of meaning. The meaninglessness of the largest pine forest created by man's making no contribution to the city, the meaninglessness of the wire mesh gardens imprisoned in a large open area, the meaninglessness of the indescribable spaces, the meaninglessness of the loneliness of trees that give unrest and anxiety when they should give people peace of mind, the insignificance of the isolated human life, the unskilled structures in terms of their healing qualities. There is a meaning problem and our proposed project is shaped on the intellectual backbone that will eliminate this meaninglessness.
